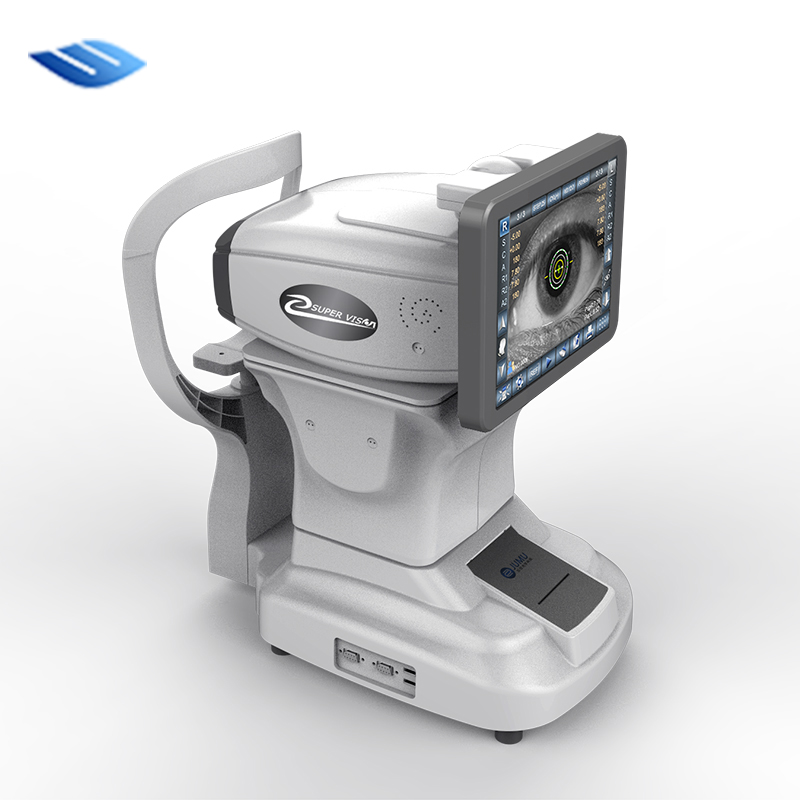

ARK-1 Full Automatic Pupil Tracement Auto Refractometer (瞳孔全自动跟踪电脑验光仪)
Hartmann principle automatic refractometer
New optical path design, clear human eye imaging effect
High-speed image acquisition system, advanced image processing and analysis
Automatic tracking and measurement of human eyes
The screen can rotate up, down, left and right freely
Electric lifting forehead bracket
High-speed printer, automatic paper cutting
-----------------------------------------------------------------
Specification (技术参数)
The measurement range of top power is - 25D~+25D
The measurement range of column mirrorness (absolute value) is - 10D~+10D
Column mirrorness: 0.00D ~ ± 10.00D (0.06012, 0.25 units)
The measuring range of cylindrical mirror axis is 0 °~180 °
Corneal diameter: 1.0 ~ 12.00 mm
Pupil distance: 10~85mm
Minimum pupil diameter: 1.0mm
Measurement completion time: < 0.5 seconds
Measured optical energy: < 30uw (to ensure measurement safety)
Corneal curvature radius: 5.0~10.0mm (0.01mm accuracy)
Corneal diopter: 33.75D ~ 67.5D (when the corneal equivalent diopter is 1.3375)
Sight mark: guiding cloud map
Stored data: 10 measured values on the left and right sides
Data transmission: RS32 Bluetooth, WIFI, etc
Display: 10.4-inch TFT touch screen (adjustable angle of view)
Printer: 57mm thermal printer, automatic paper cutting
Power supply: AC100 ~ 250V, 50/60Hz, wide power supply
Net weight: 16.5kg
Gross weight: 22kg
Package size: (L) 730mm * (W) 400mm *(H) 585mm
