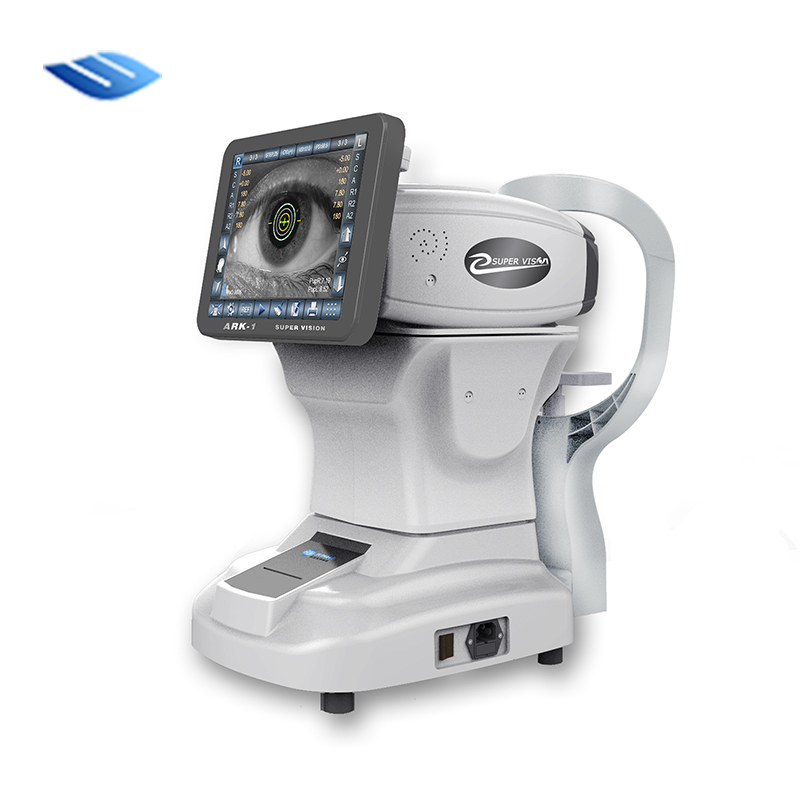

AR-1  Full Automatic Pupil Tracement Auto Refractometer  (瞳孔全自动跟踪电脑验光仪)

Hartmann principle automatic refractometer

New optical path design, clear human eye imaging effect

High-speed image acquisition system, advanced image processing and analysis

Automatic tracking and measurement of human eyes

The screen can rotate up, down, left and right freely

Electric lifting forehead bracket

High-speed printer, automatic paper cutting

 -----------------------------------------------------------------

Specification (技术参数)

The measurement range of top power is - 25D~+25D

The measurement range of column mirrorness (absolute value) is - 10D~+10D

Column mirrorness: 0.00D ～ ± 10.00D (0.06012, 0.25 units)

The measuring range of cylindrical mirror axis is 0 °~180 °

Corneal diameter: 1.0 ～ 12.00 mm

Pupil distance: 10~85mm

Minimum pupil diameter: 1.0mm

Measurement completion time: ＜ 0.5 seconds

Measured optical energy: ＜ 30uw (to ensure measurement safety)

Corneal curvature radius: 5.0~10.0mm (0.01mm accuracy)

Corneal diopter: 33.75D ～ 67.5D (when the corneal equivalent diopter is 1.3375)

Sight mark: guiding cloud map

Stored data: 10 measured values on the left and right sides

Data transmission: RS32  Bluetooth, WIFI, etc

Display: 10.4-inch TFT touch screen (adjustable angle of view)

Printer: 57mm thermal printer, automatic paper cutting

Power supply: AC100 ～ 250V, 50/60Hz, wide power supply

Net weight: 16.5kg

Gross weight: 22kg

Package size: (L) 730mm * (W) 400mm *(H) 585mm
