Product Details:

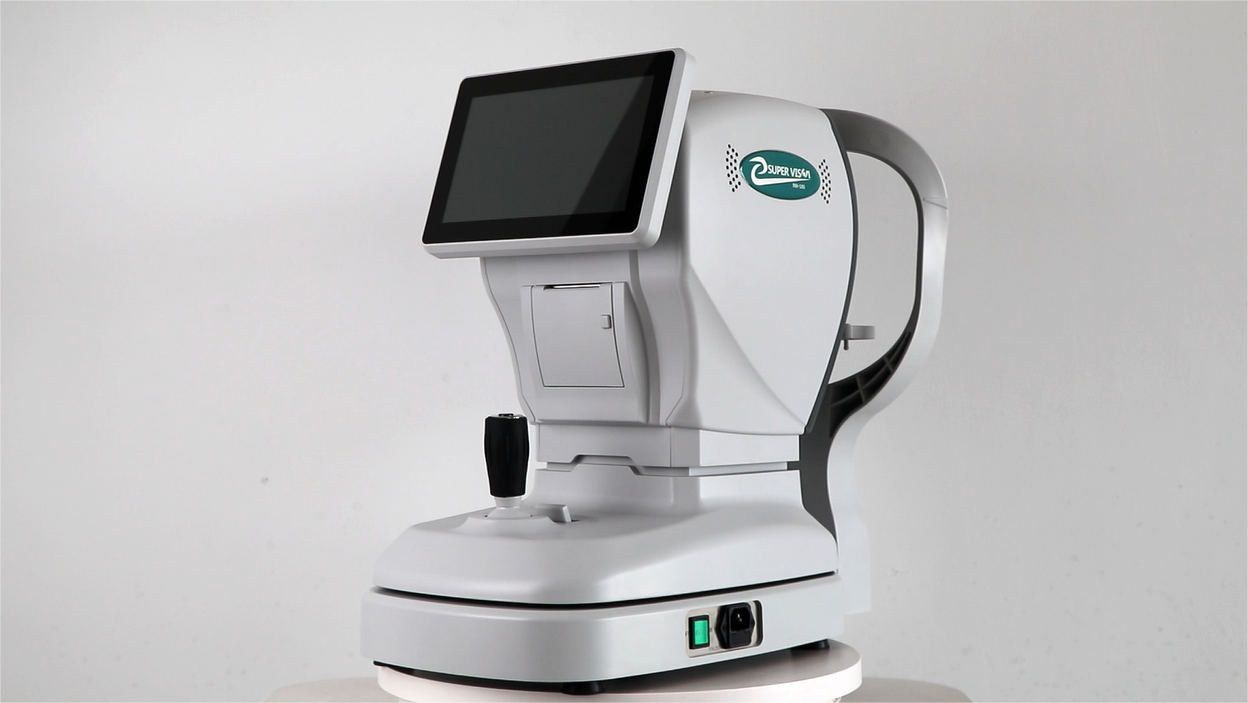

Hartmann's principle automatic optometer

High-speed image acquisition system

Lift automatic eye tracking, automatic measurement

Electric jaw lift

High speed printer

Main technical parameters:

The measurement range for spherical power is -30D to +30D (VD = 12mm, in units of 0.01, 0.06, 0.12, 0.25).

The measurement range for cylindrical power (absolute value) is 0D to 12D (in units of 0.06, 0.12, 0.25).

The measurement range for the axis of the cylinder is 0° to 180°.

The measurement range for the principal meridian axis is 0° to 180° (with a minimum resolution of 1°).

The measurement range for the radius of curvature is 6.5mm to 10.5mm (with a minimum resolution of 0.01mm).

A 9-inch TFT touch screen with adjustable viewing angle is used.

Printer: 57mm thermal printer

Visible light illuminance at the pupil exit: <3Lx (to ensure safe measurements).
