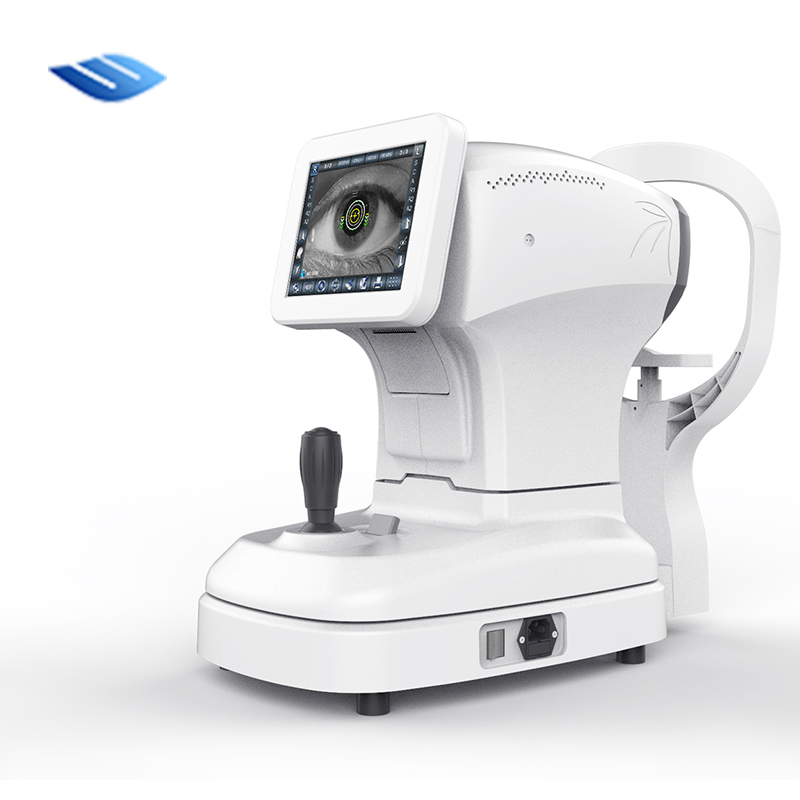

RK-160  Auto ref/Keratometer (自动电脑验光仪)

Humanized detail design

Comfortable operation and smooth measurement

Adjustable LCD screen for convenient measurement

-------------------------------------------------

Specification  (性能)

Hartmann’s Principle

New light path design ,clear human eye imaging effect

High -speed image acquisition system ,advanced image processing and analysis

The screen can be rotated freely up and down

Automatic eye tracking for lifting automatic measurement

Electric lifting amount tow

Off-speed printer

 Main technical parameters（参数）:

The measurement range for spherical power is -30D to +30D (VD = 12mm, in units of 0.01, 0.06, 0.12, 0.25).

The measurement range for cylindrical power (absolute value) is 0D to 12D (in units of 0.06, 0.12, 0.25).

The measurement range for the axis of the cylinder is 0° to 180°.

The measurement range for the principal meridian axis is 0° to 180° (with a minimum resolution of 1°).

The measurement range for the radius of curvature is 6.5mm to 10.5mm (with a minimum resolution of 0.01mm).

An 8-inch TFT touch screen is used (adjustable viewing angle).

Printer: 57mm thermal printer

Visible light illuminance at the pupil exit: <3Lx (to ensure measurement safety)
