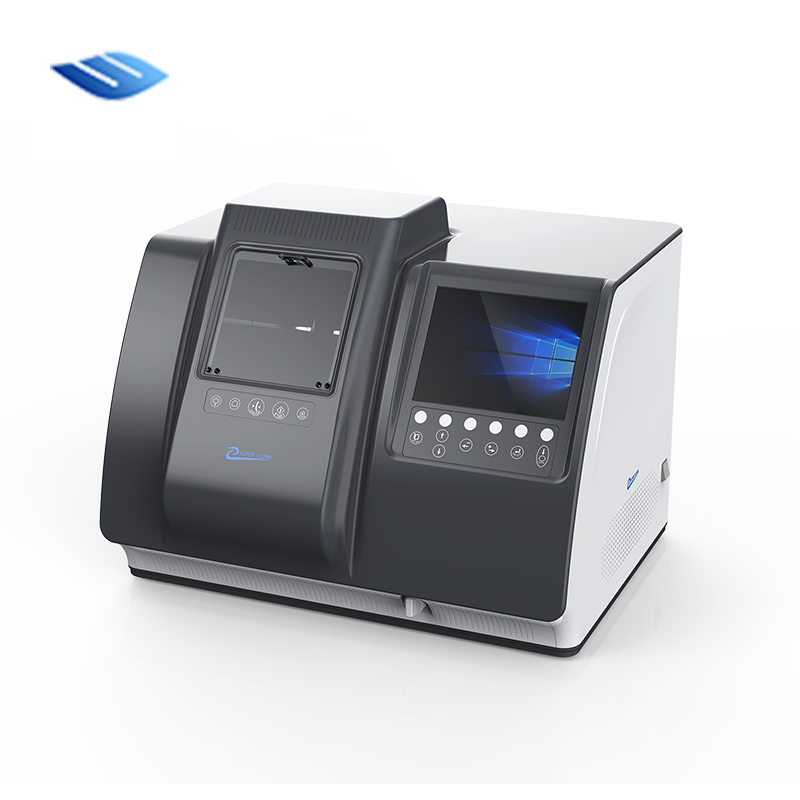

Auto lens edger(自动磨边机)

Advanced system

Stable operation

Separate design

Precise processing

 --------------------------------------------------------------------

SE-1200   Specifications(性能)

System: EDGE-OS Operating System

Water Supply System: Circulating Pump Water Supply (or Electromagnetic Valve)

Display Screen: 8 Inch High Definition True Color LCD Touch Screen

Number of Images Stored: 500

Power Source: AC220V 50HZ 900VA

Grinding Material: Resin Sheet, PC Sheet, Glass Sheet (Customized glass wheel required for grinding glass sheet)

Cutting Diameter: ≤80mm

Grinding Wheel Precision: ±0.1mm

Grinding Wheel Diameter: 100mm

Minimum Processing Size for Sharp Edges: 34*22 (mm)

Minimum Processing Size for Flat Edges: 32*20 (mm)

Device Dimensions: 535mm*455mm*445mm

Packaging Dimensions: 740mm*600mm*590mm

Device Weight: 46KG Packaging Weight: 56KG
